Reflective Safety Solutions

Daoming Optics and Chemical Co., Ltd. (DM), was established in November 2002.

DM is a multinational company with six factories covering full loop of reflective materials production. DM holding entity is located in Singapore with subsidiaries in such countries as India, Brazil, Thailand.

DM is an international high-tech enterprise of reflective materials, integrating product development, design, production and sales.

DM products meets and exceed the specification of international standards of ASTM D4956, EN12899, ECE R104, DIN67510, IRC67, MoRTH etc.

DM has gradually transformed from a single reflective material manufacturer to a comprehensive and functional film material manufacturer which now involves the fields of micro-prismatic film, aluminum-plastic film and optical film.

Lamination Film

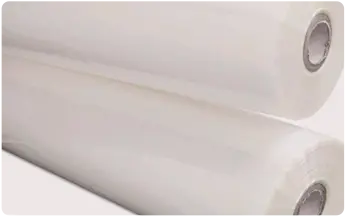

DM 50-UV Overlay Film

  • Material :
  • PVC Transparent White
  • Warranty :
  • 3 Years
  • Application :
  • Suits for all Type Digital Printing, Screen Printing, Die Cutting
  • Size :
  • 1.22X45.7m / roll
  • Standard :
  • ASTM D 4956 / IRC67/ MoRTH
  • Color :
  • White

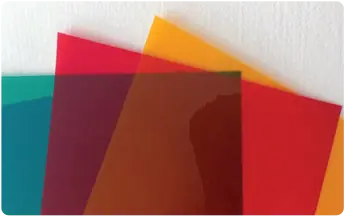

DM 1700 Electro-Cut Film

  • Material :
  • PMMA Prismatic
  • Warranty :
  • 10 Years
  • Application :
  • Suits for all Type Digital Printing, Screen Printing, Die Cutting
  • Size :
  • 1.22X45.7m / roll
  • Standard :
  • AASTM D 4956 / IRC67/ MoRTH
  • Color :
  • White, Yellow, Red, Green, Blue

DM 3200A Series (Commercial Grade)

  • Material :
  • Acrylic
  • Warranty :
  • 3 Years
  • Size :
  • 1.24X45.72m / roll
  • Color :
  • White, Yellow, Orange, Red, Green, Blue, Brown, Black

Permanent Traffic Signage

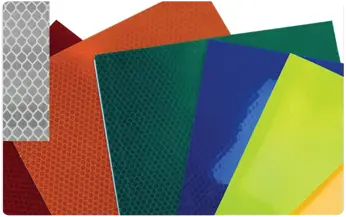

DM 7900 Platinum Grade

  • Structure :
  • Full-Cube Prismatic
  • Warranty :
  • 10 Years
  • Application :
  • Permanent Signage, Highway Road Signs
  • Processing :
  • Digital Printing, Screen Printing, Die Cutting
  • Size :
  • 1.22*45.72m / roll
  • Standard :
  • ASTM D4956 Type XI / IRC67/ MoRTH
  • Color :
  • White, Yellow, Red, Green, Blue, Orange, Brown, F. Yellow Green, F. Orange

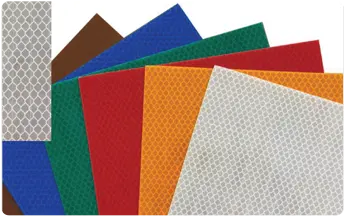

DM 7600 High Intensity
Prismatic Grade (HIP)

  • Structure :
  • PMMA Prismatic
  • Warranty :
  • 10 Years
  • Application :
  • Warning Road Sign, Information Road Sign, Mandatory Road Sign
  • Processing :
  • Digital Printing, Screen Printing, Die Cutting
  • Size :
  • 1.22*45.72m / roll
  • Standard :
  • ASTM D 4956 Type IV / IRC67/ MoRTH
  • Color :
  • White, Yellow, Red, Green, Blue, Orange, Brown, F. Yellow Green, F. Orange

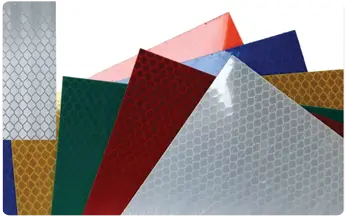

DM 5600 Engineering Grade Prismatic (EGP)

  • Structure :
  • PMMA Prismatic
  • Warranty :
  • 7 Years
  • Application :
  • Warning Road Sign, Priority Road Sign
  • Processing :
  • Digital Printing, Screen Printing, Die Cutting
  • Size :
  • 1.22*45.72m / roll
  • Standard :
  • ASTM D 4956 Type I / IRC67/MoRTH
  • Color :
  • White, Yellow, Red, Green, Blue, Orange, Brown

Work Zone Application

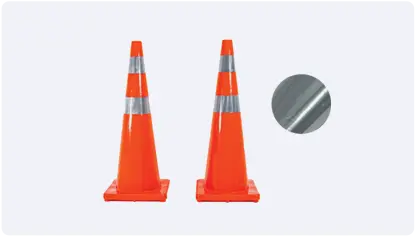

DM 3910 PVC Metalized Prismatic Reflective Sheeting

  • Structure :
  • PVC+micro Prismatic Metalized
  • Warranty :
  • 3 Years
  • Application :
  • Water Wall, Reboundable Bollard, Traffic Barrier
  • Size :
  • 1.22*45.72m / roll
  • Standard :
  • ASTM D4956 Type V
  • Color :
  • Silver

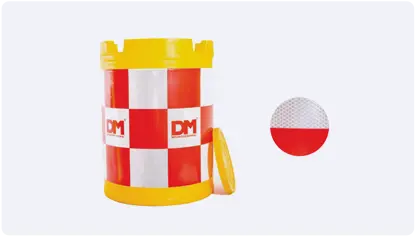

DM 3810 PVC Flexible Prismatic Reflective Sheeting

  • Structure :
  • PVC+micro Prismatic
  • Warranty :
  • 3 Years
  • Application :
  • Traffic Cone, Traffice Barrier, Bollard
  • Size :
  • 1.22*45.72m / roll
  • Standard :
  • ASTM D4956 Type VI/li>
  • Color :
  • White

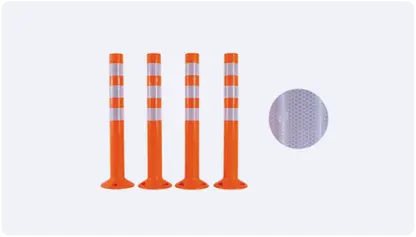

DM 3610 PVC Prismatic Honey Comb Reflective Sheeting

  • Structure :
  • PVC+micro Prismatic
  • Warranty :
  • 2 Years
  • Application :
  • Visi Protable Triangular Sign, Lane Separator, Flexible Post
  • Size :
  • 1.22*45.72m / roll
  • Color :
  • Red, White, Blue, Yellow-Green

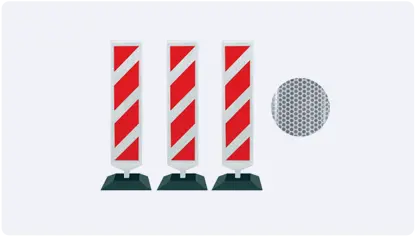

DM 1400 Flexible High Intensity Grade Reflective Sheeting

  • Structure :
  • PVC+micro Prismatic, Metalized
  • Warranty :
  • 3 Years
  • Application :
  • Triangular Safety Cone, Reboundable Pole & Bollard
  • Size :
  • 1.22*45.72m / roll
  • Standard :
  • ASTM D4956 Type III
  • Color :
  • Silver

Conspicuity Tape

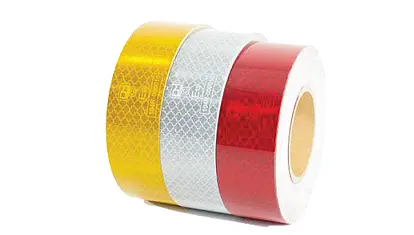

DM 9600 Conspicuity Marking Tape

  • Material :
  • PMMA
  • Structure :
  • SMicro Prismatic with Metalized Layer
  • Warranty :
  • 7 Years
  • Color :
  • Yellow, Red, White
  • Application :
  • Rigid for Oil Tank, Trailer, Segmented for Truck Tarps
  • Standard :
  • AIS-090 / ECE104
  • Size :
  • 50mmx50mtr / roll

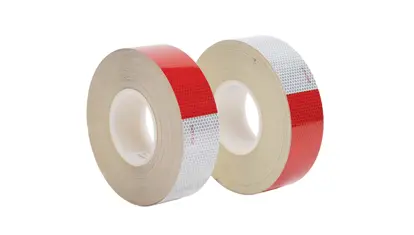

DM 9300 DOT-C2 Conspicuity Marking Tape

  • Material :
  • PMMA
  • Structure :
  • Micro Prismatic with Metalized Layer
  • Warranty :
  • 7 Years
  • Color :
  • Red-White
  • Application :
  • Oil Tank, Trailer, Semi-Trailer, Truck, School Bus
  • Standard :
  • FMVSS 108
  • Size :
  • 6*6”

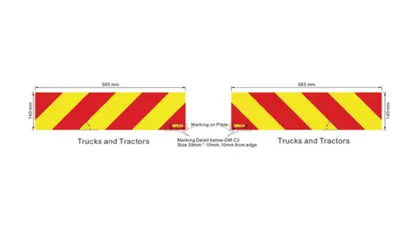

DM 9600 C3

  • Material :
  • PMMA
  • Structure :
  • Micro Prismatic
  • Warranty :
  • 7 Years
  • Color :
  • Yellow retro-reflective /Red retro-reflective (Micro prism)
  • Application :
  • Trucks & Tractors
  • Standard :
  • 140mm*565mm
  • Size :
  • AIS-089

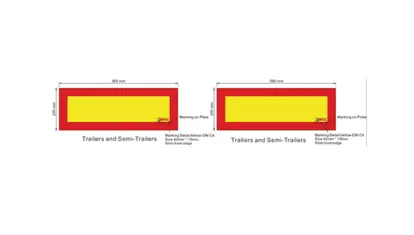

DM 9600 C4

  • Material :
  • PMMA
  • Structure :
  • Micro Prismatic
  • Warranty :
  • 7 Years
  • Color :
  • Yellow retro-reflective/Red retro-reflective (Micro prism)
  • Application :
  • Trucks & Tractors
  • Standard :
  • 200mm*565mm
  • Size :
  • AIS-089

Road Furniture

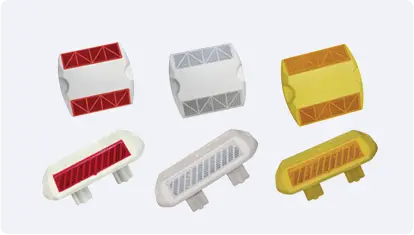

Raised Pavement Markers (RPM)

  • Category A road studs as per MoRTH specification.
  • High retro-reflective performance for wide range of observation angles.
  • Excellent nighttime visibility.
  • Sustained product performance over longer period.
  • Reflective higher than minimum requirements as per ASTM D4280 and MoRTH Specifications.
  • Compressive strenth than minimum requirement as per MoRTH specification.

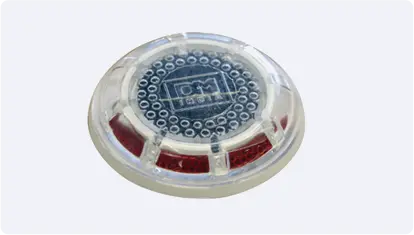

Solar Stud

  • Uses light guide technology for 360 degree & 800m minimum visibility as per MoRTH specification.
  • Compressive strenght than minimum requirement as per MoRTH specification.
  • Improved anchorage to road through double shand & base design.
  • Water/dust ingress protection with IP68 rating.
  • Meets and exceeds MoRTH specification.
  • Clear visibility in foggy and rainy condition.
  • Blinking rate more than 1.25 Hertz

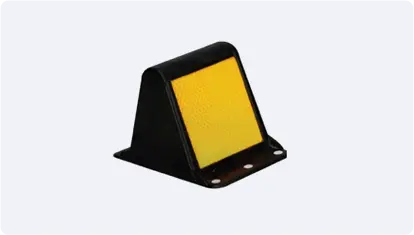

Median Marker

  • Excellent visibility during day/night & dawn/dusk conditions.
  • Excellent angularity offering highest visibility
  • Good long-distance visibility for extended distances, enhancing safety standards on road.
  • Excellent UV and outdoor weathering resistance.

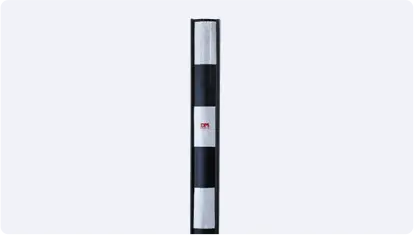

Delineator

  • PMMA with Type XI Micro Prismatic Structure.
  • Robust product design with powder coated body for corrosion resistance.
  • Longer visibility time for driver and improved safety.
  • Vandal resistance against sheeting peel-off.
  • Ellipsoidal shape with good entrance angle that provides more reflective area and wider angle of visibility.

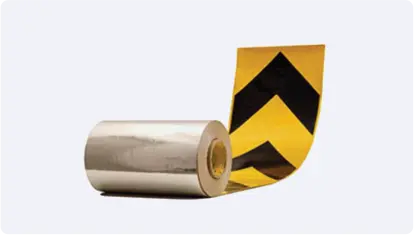

Aluminium Backed Flexible Prismatic

  • Meets & exceeds IRC 79-2019 standards.
  • Non-metallic Prismatic Type VI retro-reflective sheeting.
  • Backed with a 50 micron Aluminium (Al) foil with a pre-coated pressure sensitive adhesive and easily removable liner.
  • Very high conformability and non-returning dead-fold characteristics required for
  • application on rough and uneven surfaces.
  • Retro-reflective sheeting shall show no cracking or de-lamination outside of the actual area of impact when subjected to the impact test in accordance with S2.2.1 of ASTM D4956-09.
  • Can be applied on any rough surfaces: tree trunks, concrete, metals, etc.

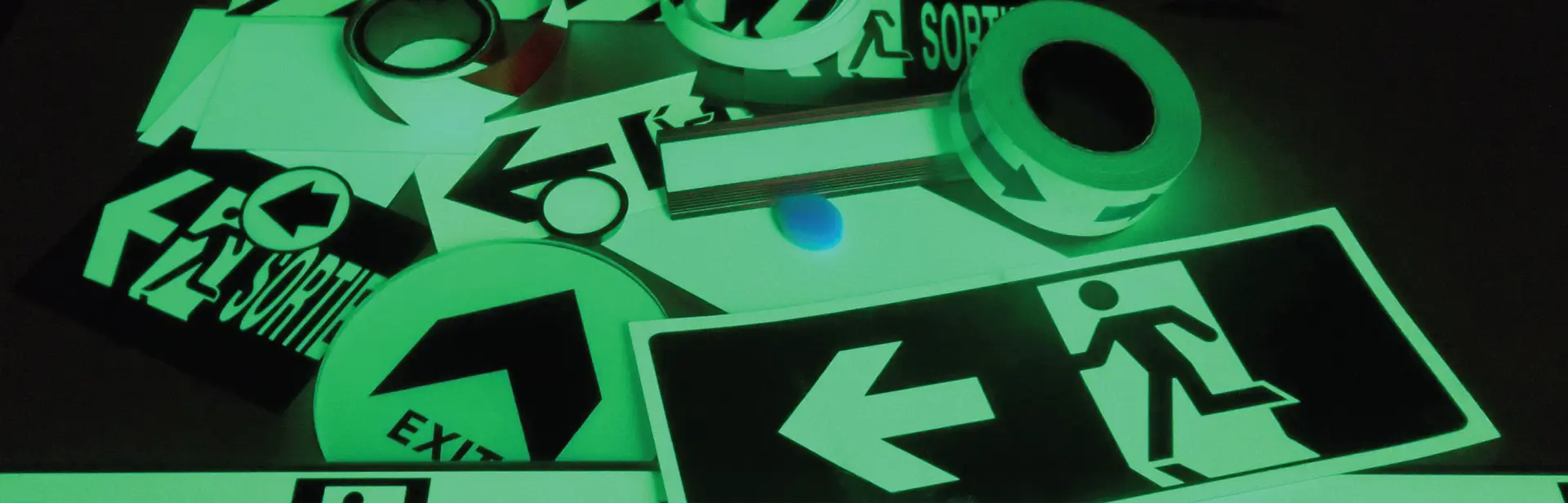

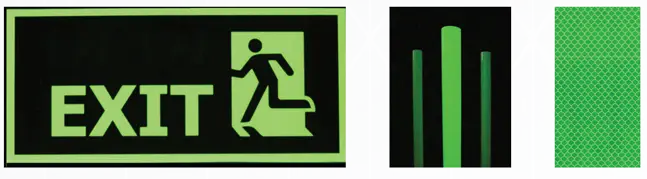

Photo-Luminous Film

Material Acrylic Pmma
Item No. DM 5201 DM 5202 DM 9203 DM 7690
Standard DIN67510
Class A		 DIN67510
Class B		 DIN67510
Class C		 DIN67510 Class C
ASTM D4956 Type IV
Warranty 5 Years 5 Years 5 Years 10 Years
Processing Screen Printing,
UV Printing		 Screen Printing,
UV Printing		 Screen Printing,
UV Printing		 Digital Printing,
Screen Printing, Die Cutting
Color Yellow-Green Yellow-Green Yellow-Green Yellow-Green
After Glowtime 4 Hours 6–10 Hours 10–12 Hours >12 Hours

Application

Fire-Fighting Emergency, Safe Escape Route, Emergency Access Direction
